TECHNICAL DATA

PERFORMANCE DATA

TypePC-H-36-WCPC-H-67-ACPC-H-80-WCPC-H-150-WC
engine outputkW366780150
rotation speed1/min200-4.500200-4.500200-4.500200-4.500
hopper volumeliter100-1.000100-1.000100-1.000100-1.000

capacity
dependent on
product and process

t/h0,2-60,2-120,2-150,2-20

perforated plate
boring diameter

mm1,5-101,5-101,5-101,5-10
connection
power load		A84180200474
central controlSPSSPSSPSSPS
start-up throttle
"soft-start"		××××

DIMENSIONS AND WEIGHT

TypePC-H-36-WCPC-H-67-ACPC-H-80-WCPC-H-150-WC
lengthmm1.1851.5601.4361.765
widthmm7948808801.099
heightmm7288068061.006
weightkg7008008001.650

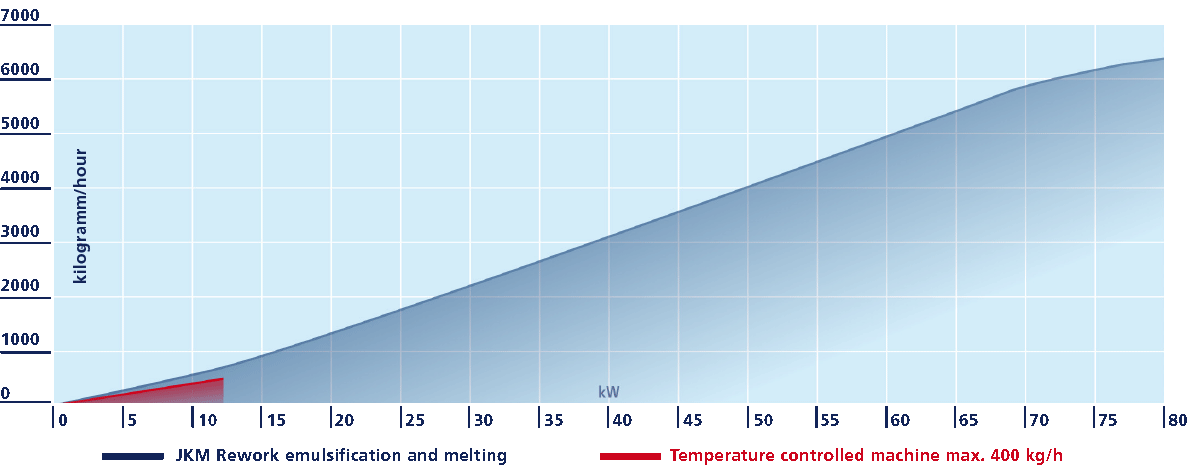

MELTING KW / HOURLY CAPACITY



THE MICRO-CUTTER FOR THE FOOD INDUSTRY



– particle size 40μm – 3mm

– temperature-controlled melting from 25°C

– water-cooled servomotor

– no air-circulation

– faster changing of cutting tools

– enclosed machine-housing

– low maintenance



PRODUCT



  • high hourly output
  • product-gentle processing
  • stable emulsions
  • highest fineness-degree through innovative blade-geometry

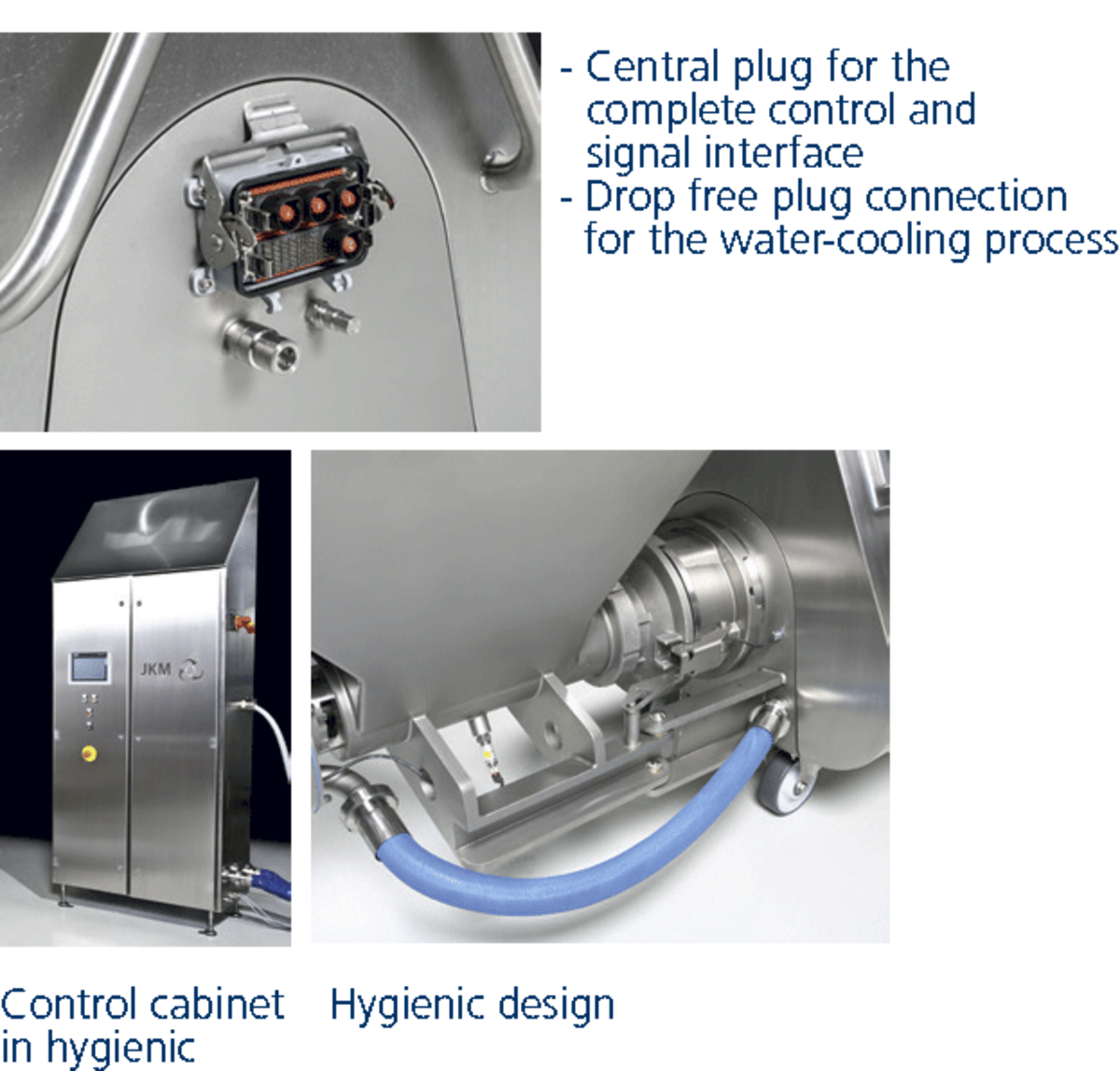

DESIGN

  • compact, space-saving design
  • enclosed machine housing
  • quiet drive technology
  • hygienic design

FAST-CHANGE COUPLING SYSTEM

  • smooth shaft, no dead-spaces at shaft-socket connection
  • fulfills highest hygienic requirements
  • very fast change of blades and cutting instruments

TOOLS / BLADES

  • simple and fast change of cutting tools
  • no metallic abrasion thanks to no-contact cutting





OUR RELIABLE SYSTEM-PARTNER FOR POWER SOLUTIONS

Water-cooled servomotors offer the following advantages:
– NO air circulation on the product floor
– rotation speed up to 4.500 RPM
– very high overload capacity (150%)
– high start-up torque
– compact form with a high power density
– energy efficiency through optimal cooling
